Designed for the NXT UMOUNT® System, these integrated attachment kits simplify metal roof installations by reducing rooftop assembly and eliminating the need to source brackets and rail mounts separately. The result is a faster, more streamlined install experience built for efficiency on the jobsite.
Eliminates the need to source and assemble separate components
Pre-assembled kits simplify inventory and improve jobsite efficiency
The rail clamp attaches directly to the metal roof bracket, reducing the number of parts for assembly
Pre-assembled attachment kits are designed for speed and simplicity
Fewer assembly steps on the rooftop allows for faster installation timelines
Designed to support a wide range of standing seam and trapezoidal metal roof profiles
Four (4) Unirac pre-assembled kits available increases installation flexibility and reduces the need for custom solutions
Combines the proven performance of the NXT UMOUNT System with industry-leading S-5! metal roof attachments for a reliable, integrated installation experience on metal roofs
Structural engineering to fully support all available pre-assembled S-5! metal roof attachments for both standing seam and trapezoidal roof profiles
Fully compatible with the NXT UMOUNT System for residential and commercial applications
Meets the UL 2703 Standard
NXT UMOUNT™ is Unirac’s next-generation flush-mount racking system, engineered for smarter, faster solar installs.

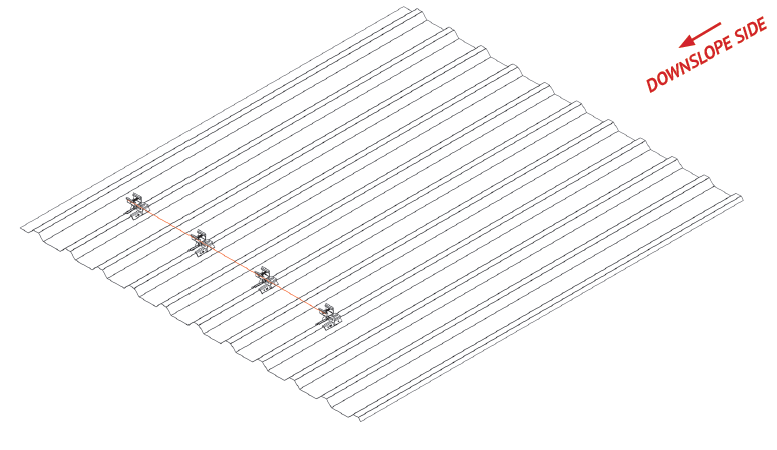

PROTEA BRACKET – PREPARE THE ROOF & CREATE LAYOUT
Clean the roof panel surface and determine the Protea Bracket locations. Install the end brackets at an equal distance from the roof edge, then use a string line to align the remaining brackets.

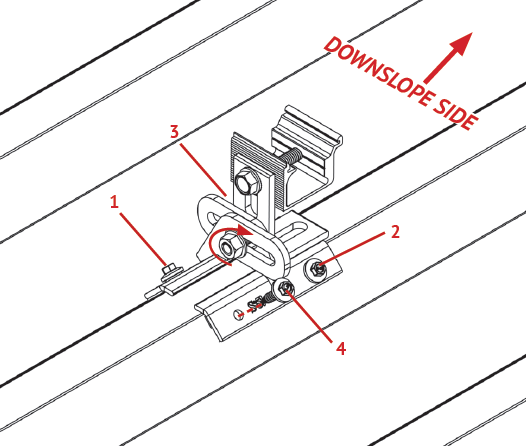

PROTEA BRACKET – POSITION & SECURE ON THE ROOF
Position the Protea Bracket on the roof rib, ensuring all brackets are oriented the same direction. Secure the bracket to the roof using the supplied hardware and tighten the hinge bolt to the specified torque.
STANDING SEAM BRACKET – PREPARE & POSITION
Partially thread the set screw into the Standing Seam Bracket and position it on the standing seam in the correct orientation for the seam type.

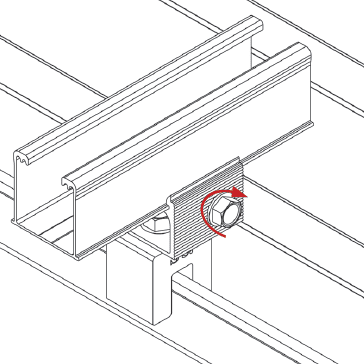

STANDING SEAM BRACKET – SECURE & INSTALL THE RAIL
Tighten the set screw to the specified torque. If required, install and tighten the flange bolt.
Position the NXT Rail in the rail clamp and tighten the rail clamp hardware to secure the assembly.
